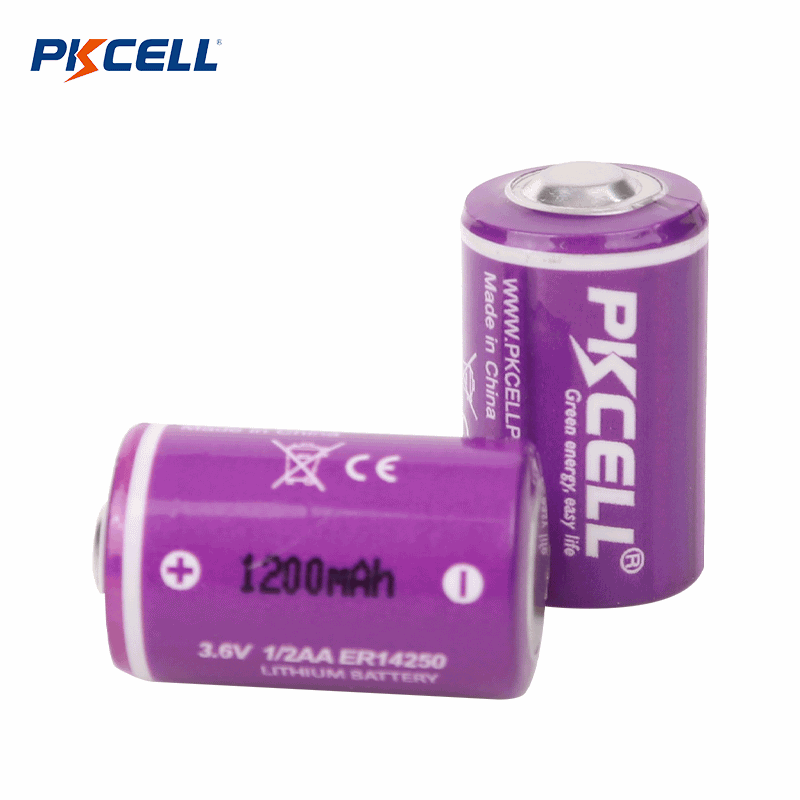

3.6V 1/2AA ER14250 Li-SoCl2 Battery (1200mAh)
Short Description:
With 20+ Years of Experience, Pkcell has become a leading Li-Socl2 Battery manufacturer, Specializing in the production of the ER14250 battery.
Dimension: 14.5*25.0 mm
Weight: 10 g
Self-Discharge Rate (Year): <1%
Shelf Life: >10 Years
Operating Temperature: -55~85 °C
Standard Current: 0.5 mA
Max Discharge Current: 20 mA (continuous), 45 mA (Pulse)
Applications : Electronic devices and Electric power/water/gas meters,Memory ICs and more.
Certification
Certified By IEC, SNI, BSCI, and More, Ensuring Top-Notch Quality and Safety.
Typical Applications:
Alarms and security systems, GPS, metering systems, memory back up, tracking system and GSM communication, Aerospace, Defence, Military, Power Management, Portable Devices, Consumer Electronics, Real-time clock, Tracking system, Utility metering,etc
ER14250 Specifications:
| Model name: ER14250 | Size: CC, Φ14.5mm*25.2mm(Max) |
| Nominal capacity: 1200mAh(1.2Ah) | Nominal voltage: 3.6V |
| Open circuit voltage:3.66V | Cut-off Voltage: 2.0V |
| Max Pulse Discharge current: 100mA | Standard Current : 0.5mA |
| Max Continuous Discharge current: 50mA | Operating temperature range: -55°C to 85°C |
| Typical weight: 9.3g | Typical Shelf life: 10 years |
Available Terminations: 1) Standard terminations 2)Solder tabs 3)Axial Pins 4)or special requirement(wire, connectors, etc)
Features:
1) High Energy density, High voltage, stable during most of the application’s lifetime
2) Wide range of operating temperature
3) Long self-discharge rate (≤1% per year during Storage)
4) Long storage life (10 years under room temperature)
5) Hermetic glass-to-metal sealing
6) Non-flammable electrolyte
7) Meet IEC86-4 safety standard
8) Safe to export MSDS, UN38.3 cert. available

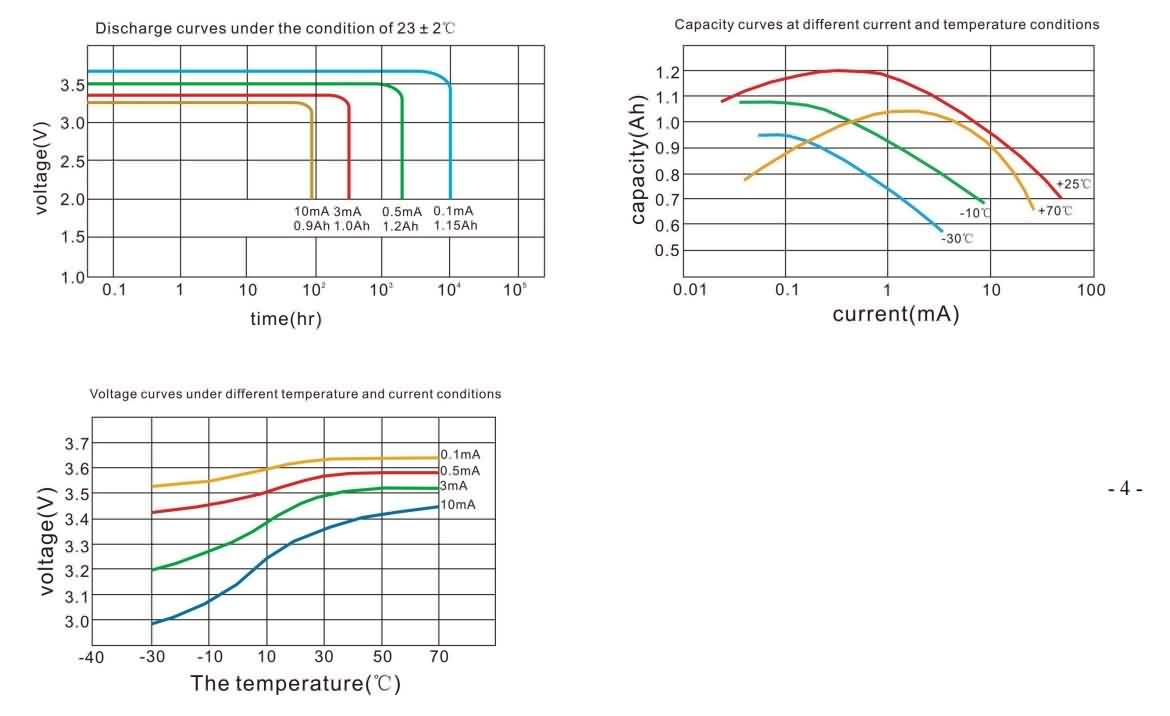

Discharge performance graph
Storage condition:
clean, cool (preferably below +20℃, not exceeding +30℃), dry and ventilated.
Warning:
1)These are non rechargeable batteries.
2)Fire, explosion and burn hazard.
3)Do not recharge, short circuit,crush, disassemble, heat above 100℃ incinerate.
4)Do not use the battery beyond the permitted temperate range.
| Li-SOCl2(Energy Type) | ||||||||||
| Model IEC | Nominal Voltage(V) | Dimensions (mm) | Nominal Capacity (mAh) | Standard Current (mA) | Max Continuous Discharge Current (mA) | Max Pulse Discharge Current (mA) | Cut-off Voltage (V) | Weight Approx (g) | Operating Temperature (°C) | |
| ER10450 | AAA | 3.6 | 10.0×45.0 | 800 | 1.00 | 10 | 20 | 2.00 | 9 | -55~+85 |
| ER14250 | 1/2AA | 3.6 | 14.5×25.0 | 1200 | 0.50 | 50 | 100 | 2.00 | 10 | -55~+85 |
| ER14335 | 2/3AA | 3.6 | 14.5×33.5 | 1650 | 0.70 | 50 | 100 | 2.00 | 13 | -55~+85 |
| ER14505 | AA | 3.6 | 14.5×50.5 | 2400 | 1.00 | 100 | 200 | 2.00 | 19 | -55~+85 |
| ER17335 | 3.6 | 17×33.5 | 2100 | 1.00 | 50 | 200 | 2.00 | 30 | -55~+85 | |
| ER17505 | 3.6 | 17×50.5 | 3400 | 1.00 | 100 | 200 | 2.00 | 32 | -55~+85 | |
| ER18505 | A | 3.6 | 18.5×50.5 | 4000 | 1.00 | 100 | 200 | 2.00 | 32 | -55~+85 |
| ER26500 | C | 3.6 | 26.2×50.5 | 8500 | 2.00 | 200 | 400 | 2.00 | 55 | -55~+85 |
| ER34615 | D | 3.6 | 34.2×61.5 | 19000 | 3.00 | 200 | 400 | 2.00 | 107 | -55~+85 |
| ER9V | 9V | 10.8 | 48.8×17.8×7.5 | 1200 | 1.00 | 50 | 100 | 2.00 | 16 | -55~+85 |

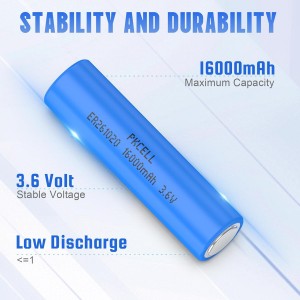

| ER261020 | 3.6 | 26.5×105 | 16000 | 3.00 | 200 | 400 | 2.00 | 100 | -55~+85 | |
| ER341245 | 3.6 | 34×124.5 | 35000 | 5.00 | 400 | 500 | 2.00 | 195 | -55~+85 | |
