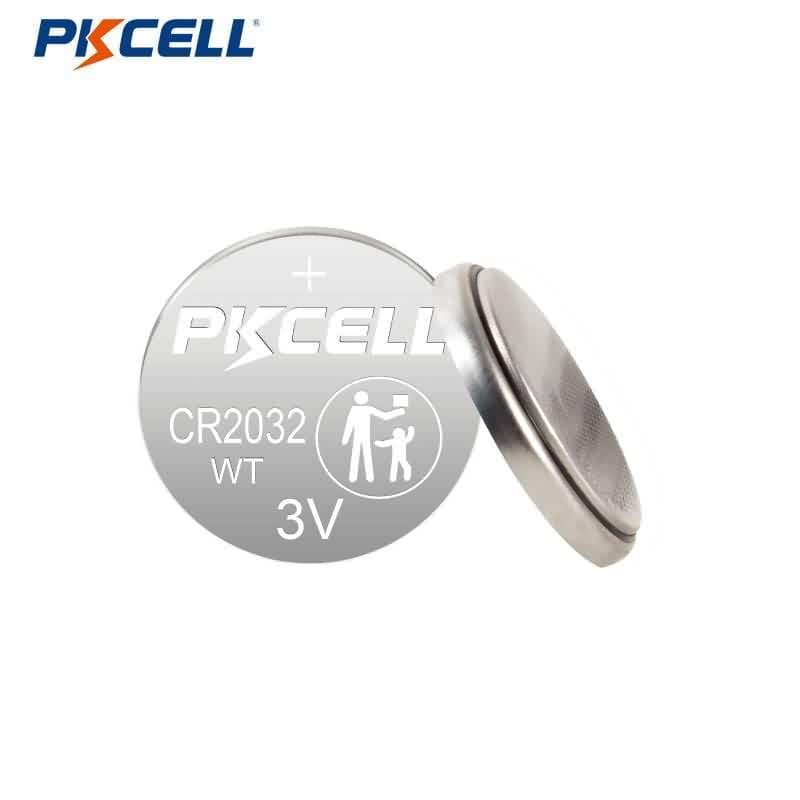

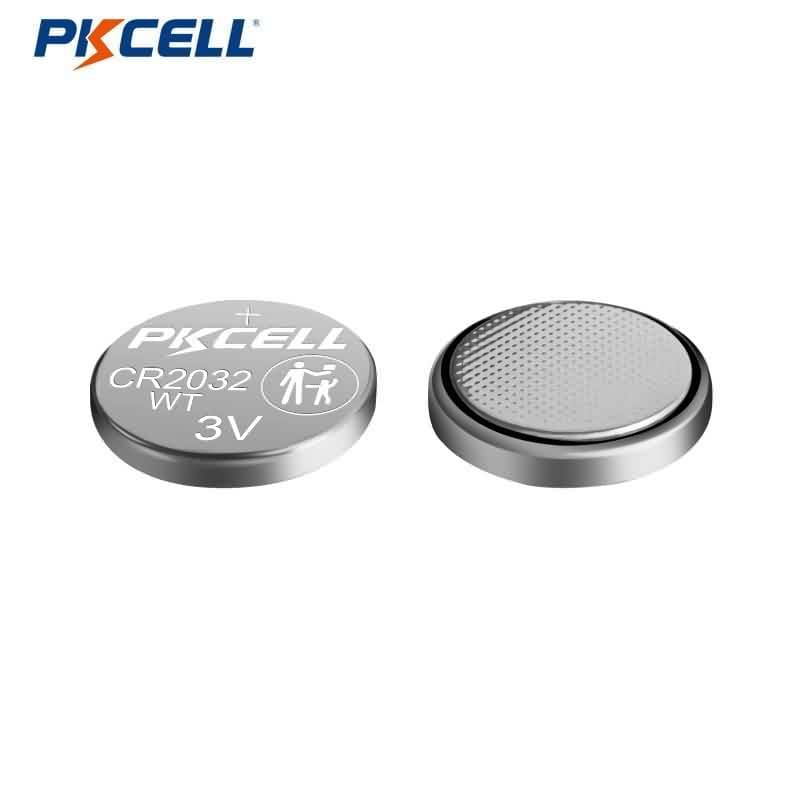

3V CR2032WT Lithium Button Cell Battery (220mAh)

Short Description:




Product Detail

Product Tags

Brand: PKCELL
Model:CR2032WT Capacity: 220mAh  Chemical Composition: Lithium

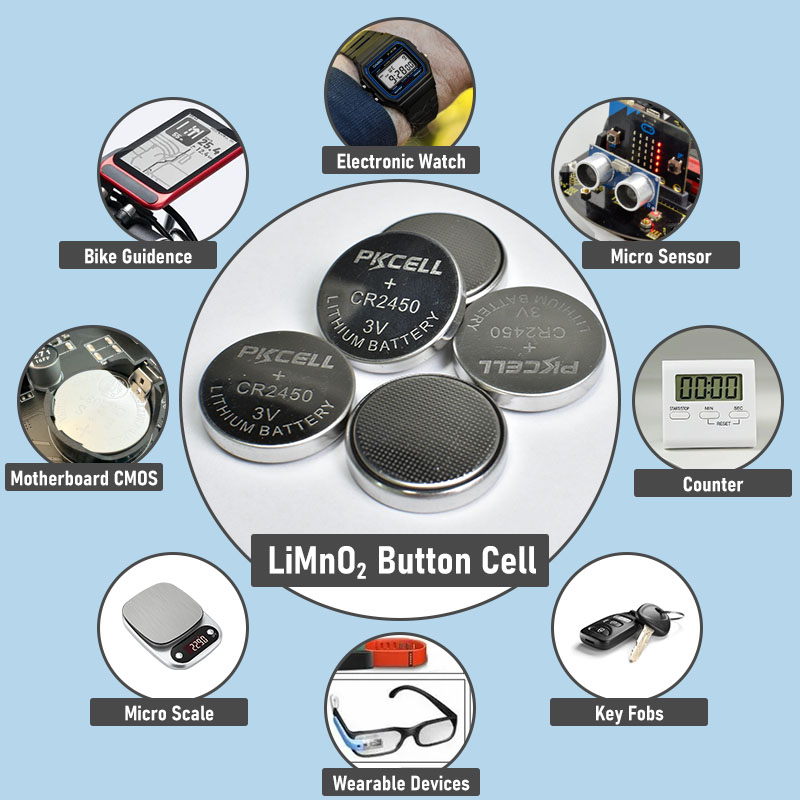

Application: Industrial control, server, outdoor monitoring equipment, medical equipment
Free promotional accessories: pen, flash light, T-shirt etc.
Oversea Warehouse:Canada,UniteStates,Russian,Australia
Advantages:
1) Environmental friendly,Light weight
2) High density of energy
3) Low self-discharge
4) Low internal resistance
5) No memory effect
6) Free of mercury
7) Safety assurance : No fire, No explosion, No leakage
Disply and storage:
1.Batteries shall be stored in well-ventilateddry and cool conditions
2.Battery cartons should not be piledup in severa layers,or should not exceed a specified height
3.Batteries should not be exposed to direct sun ray for a long time or placed in areas where they get wet by rain.
4.Do not mix unpacked batteries so as to avoid mechanical damage and/or short circuit among each other
Warnings and Cautions:
1.Do not short circuited, recharge, heat, disassemble nor dispose in fire
2.Do not force-discharge.
3.Do not make the anode and the cathode reversed
4.Do not solder directly
WT series–Wide temperature battery
Model Discharge Standard  capacity(mAh) (MPQ) Operating Temperature Range(Low) Operating Temperature (High))
CR1220WT 62KΩ(0.05mA) 38 6000 -40℃  +85℃
CR1225WT 62KΩ(0.05mA) 50 4800 -40℃  +85℃
CR1620WT 30KΩ(0.1mA) 70 6000 -40℃  +85℃
CR1632WT 15KΩ(0.2mA) 120 4000 -40℃  +85℃
CR2016WT 30KΩ(0.1mA) 80 6000 -40℃  +85℃
CR2025WT 15KΩ(0.2mA) 150 4800 -40℃  +85℃
CR2032WT 15KΩ(0.2mA) 220 4000 -40℃  +85℃
CR2330WT 15KΩ(0.2mA) 260 2000 -40℃  +85℃
CR2354WT 7.5KΩ(0.4mA) 520 1400 -40℃  +85℃
CR2430WT 15KΩ(0.2mA) 270 2000 -40℃  +85℃
CR2450WT 7.5KΩ(0.4mA) 600 1400 -40℃  +85℃
CR2477WT 4.7KΩ(0.6mA) 1000 1000 -40℃  +85℃
CR3032WT 7.5KΩ(0.4mA) 500 1500 -40℃  +85℃
