Button Cell Battery-LiMnO2

Q: What is the difference between CR2032, CR2025 and CR2016?

CR2032, CR2025 and CR2016 have the same 20mm diameter but different thickness and capacity. CR2032 is thicker and usually has higher capacity, while CR2025 and CR2016 are used in thinner devices.

Q: Can I request samples before mass production?

Yes. Customers can contact PKCELL with application information, model requirements and estimated demand to request samples for device validation.

Product Overview

What Are Lithium Button Cell Batteries?

Lithium button cell batteries, also called lithium coin cells, are compact primary lithium batteries designed for stable voltage output, long shelf life and high energy density in small electronic devices. Most lithium button cells use a 3V lithium manganese dioxide chemistry and are widely used in memory backup, medical electronics, automotive keys, sensors, security devices and portable consumer products.

Compared with alkaline button cells, lithium button batteries provide higher nominal voltage, better energy density and more stable discharge performance. Common models include CR2032, CR2025, CR2016, CR2450, CR2477, CR1632 and CR1220. For PCB-mounted applications, lithium button cells can also be customized with solder tabs, pins, leads or wire connectors.

PKCELL supplies standard lithium coin cells, special button batteries and lead/tab button batteries for B2B customers, device manufacturers and OEM projects requiring stable long-term power.

Quick Facts

Use these basic parameters as a starting point before choosing a specific button cell model.

3V Nominal Voltage

CR Popular Series

5+ Years Shelf Life

OEM Tabs / Leads

Low Self-discharge

RoHS Mercury Free

Choose Your Lithium Button Battery Series

Start from battery structure, installation method and OEM requirement. Each image card links to a dedicated subcategory page for more focused model selection.

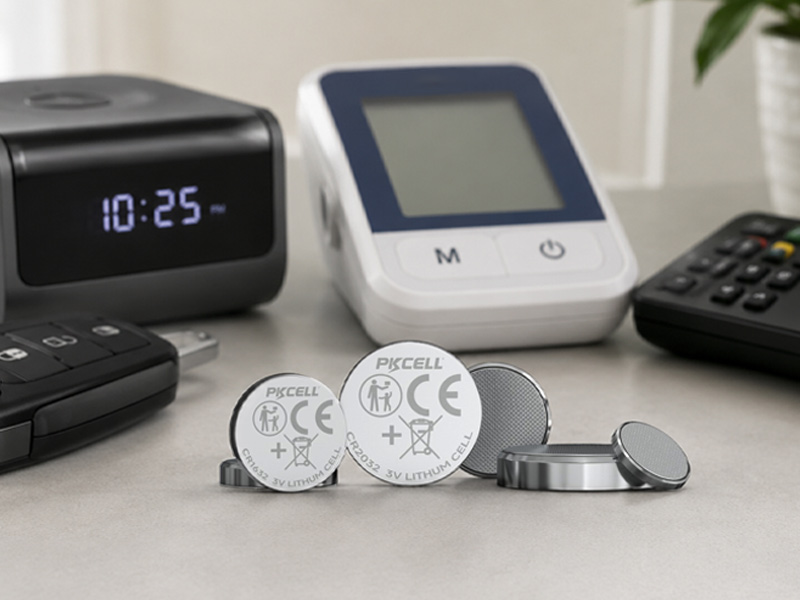

Normal Lithium Button Battery

Standard 3V CR lithium coin cells for compact electronics, medical devices, car keys, remotes and memory backup.

✓CR927 to CR3032 model coverage

✓Stable 3V lithium output

✓Low self-discharge and long shelf life

✓Suitable for mass production

View Series

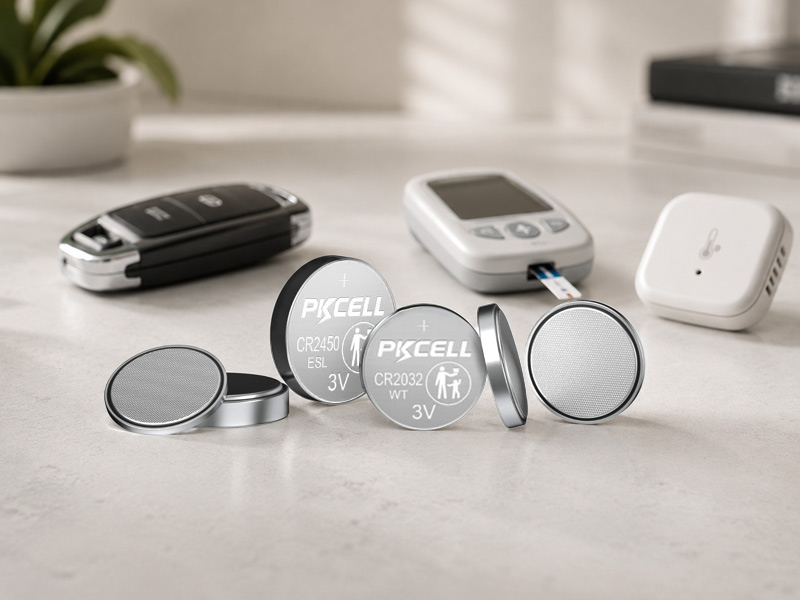

Special Lithium Button Battery

Special button cell options for devices requiring specific structure, operating temperature, discharge behavior or long service life.

✓Application-based model recommendation

✓Support for compact and high-capacity cells

✓Suitable for industrial devices

✓Engineering confirmation available

View Series

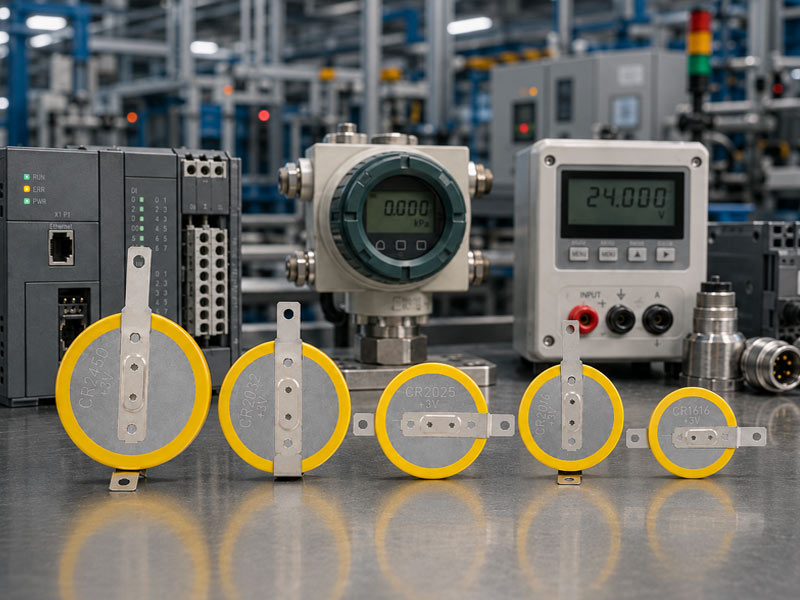

Lithium button battery with solder tabs and lead wires

Lithium Button Battery with Lead/Tab

Tabbed coin cells and leaded button batteries for PCB mounting, memory backup, instruments and industrial control devices.

✓Solder tabs, pins and lead wires

✓Connector and insulation options

✓Custom tab direction support

✓OEM pack assembly available

View Series

Typical Applications of Lithium Coin Cell Batteries

Lithium button batteries are suitable for compact devices that require stable voltage, low self-discharge and long standby life.

Automotive

Automotive Keys

Common models: CR2032, CR2025 and CR1632 for car keys, remote keyless entry and automotive accessories.

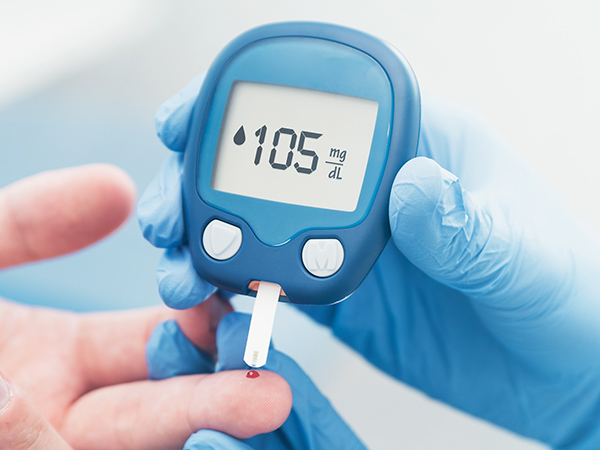

Medical

Medical Devices

Compact 3V power for glucose meters, thermometers, portable monitors and healthcare electronics.

IoT

IoT Sensors

CR2450, CR2477 and tabbed coin cells support wireless sensors, beacons and connected devices.

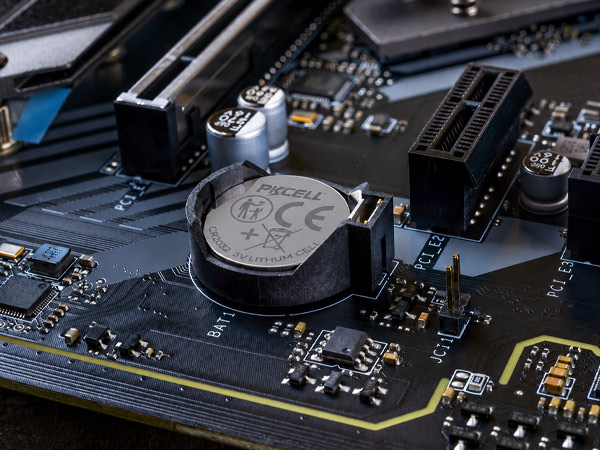

Backup

CMOS & Memory Backup

CR2032 and CR2032 with tabs are widely used for RTC, memory backup and data retention applications.

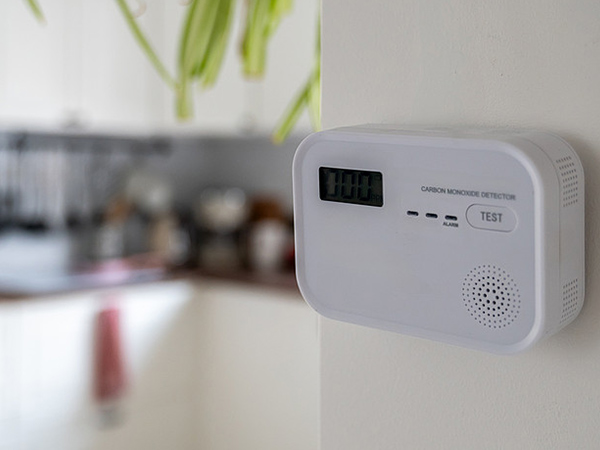

Security

Security Devices

Reliable coin cell power for alarms, detectors, access control devices and emergency electronics.

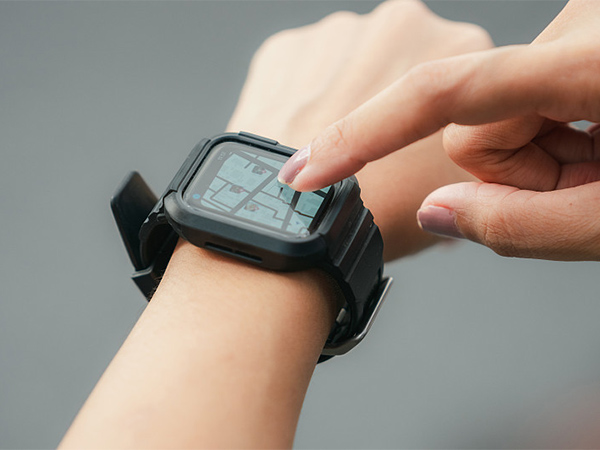

Lithium button cell battery for wearable devices

Wearables

Thin CR2016, CR2025 and compact CR1632 cells are suitable for small instruments and wearable products.

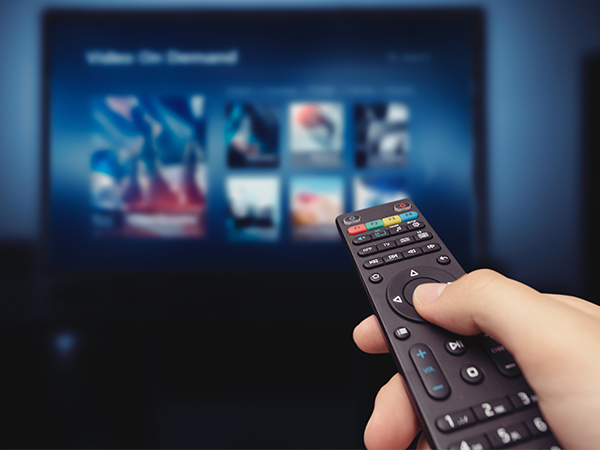

Consumer

Remote Controls

Stable discharge performance for remotes, toys, calculators, LED products and compact consumer devices.

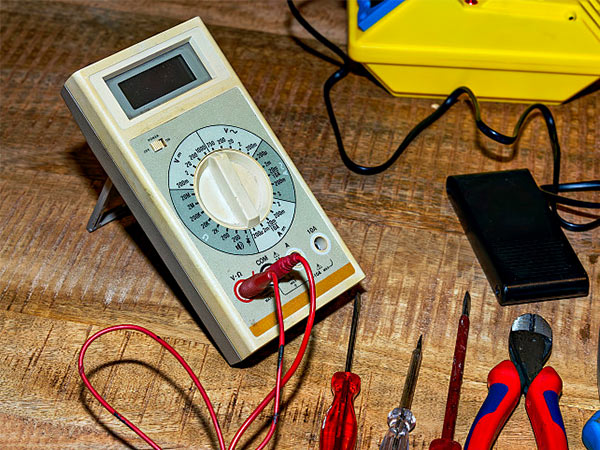

Industrial

Industrial Electronics

Tabbed and leaded coin cell solutions for meters, instruments, control boards and PCB backup systems.

Common Lithium Button Cell Battery Models

Use this model table as a quick reference for common CR lithium button cell batteries. Capacity, dimensions and weight should be confirmed with the final datasheet before mass production.

Model

System

Voltage (V)

Capacity (mAh)

Dimension (mm)

Typical Applications

Next Step

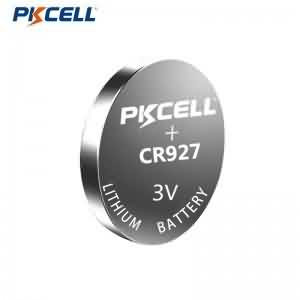

CR927

Lithium

3.0

30

9.5×2.7

LED products, mini devices, compact remotes

View Model

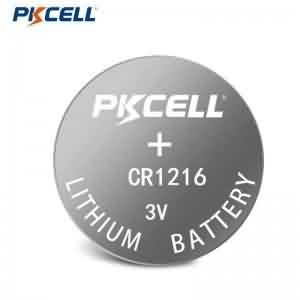

CR1216

Lithium

3.0

25

12.5×1.6

Mini electronics, calculators, small instruments

View Model

CR1220

Lithium

3.0

40

12.5×2.0

LED products, compact sensors, mini devices

View Model

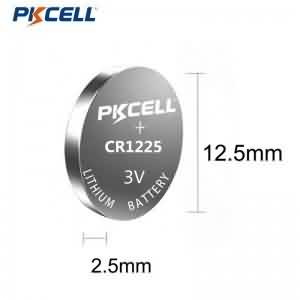

CR1225

Lithium

3.0

50

12.5×2.5

Small remotes, watches, portable electronics

View Model

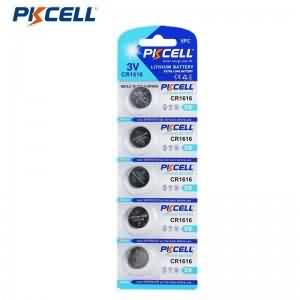

CR1616

Lithium

3.0

50

16.0×1.6

Slim remotes, wearable devices, small electronics

View Model

CR1620

Lithium

3.0

70

16.0×2.0

Car keys, remotes, medical electronics

View Model

CR1632

Lithium

3.0

120

16.0×3.2

Automotive keys, remotes, wearable devices

View Model

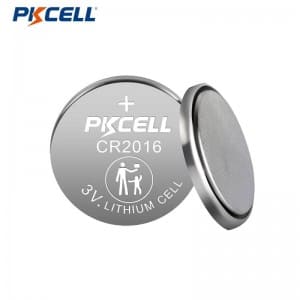

CR2016

Lithium

3.0

75

20.0×1.6

Ultra-thin devices, calculators, small remotes

View Model

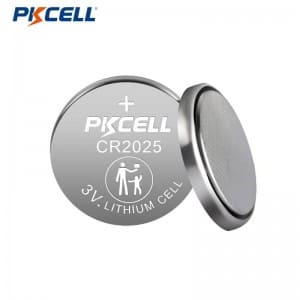

CR2025

Lithium

3.0

150

20.0×2.5

Thin electronics, remotes, medical devices

View Model

CR2032

Lithium

3.0

210

20.0×3.2

Car keys, CMOS backup, medical devices, remotes

View Model

CR2032

Lithium

3.0

220

20.0×3.2

CMOS backup, RTC, memory backup, instruments

View Model

CR2050

Lithium

3.0

150

20.0×2.5

Compact electronics, remotes, backup power

Ask Quote

CR2320

Lithium

3.0

130

23.0×2.0

Meters, instruments, industrial electronics

View Model

CR2325

Lithium

3.0

190

23.0×2.5

Sensors, security devices, backup applications

View Model

CR2330

Lithium

3.0

260

23.0×3.0

Industrial electronics, instruments, IoT devices

View Model

CR2430

Lithium

3.0

270

24.5×3.0

Security devices, sensors, meters

View Model

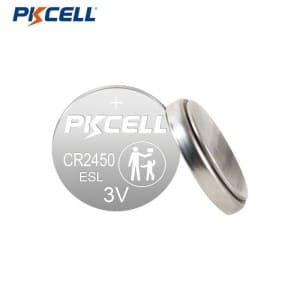

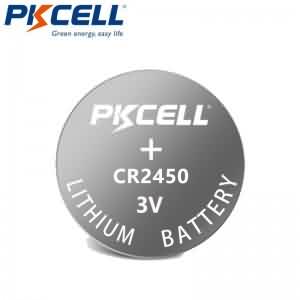

CR2450

Lithium

3.0

600

24.5×5.0

IoT sensors, security devices, industrial electronics

View Model

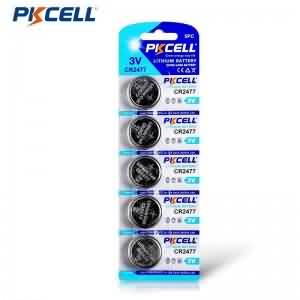

CR2477

Lithium

3.0

900

24.5×7.7

High-capacity backup, sensors, meters

View Model

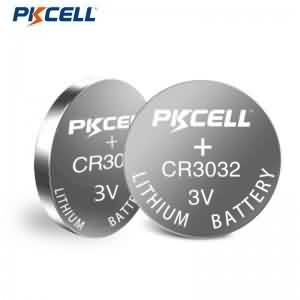

CR3032

Lithium

3.0

500

30.0×3.2

Large backup devices, instruments, industrial systems

View Model

How to Choose the Right Lithium Button Cell Battery

The right coin cell depends on device size, current demand, operating environment, mounting method and target service life.

CR2032 vs CR2025 vs CR2016

These three models have the same 20mm diameter but different thickness and capacity. CR2032 is thicker and usually provides higher capacity, while CR2025 and CR2016 are used where thinner battery height is required.

Choose CR2032 when space allows and longer runtime is needed. Choose CR2025 or CR2016 for thinner product design.

When Should You Choose CR2450 or CR2477?

Larger coin cells such as CR2450 and CR2477 provide higher capacity and are suitable for devices requiring longer standby life, stronger backup support or more frequent operation.

Suitable for IoT sensors, security devices, instruments and industrial electronics.

Standard Coin Cell or Battery with Tabs?

Standard coin cells are used in battery holders. Coin cells with tabs or leads are used when the battery needs to be soldered or mounted onto a PCB.

For PCB backup, memory backup and industrial control boards, choose tabbed or leaded button batteries.

What Information Should You Provide?

To recommend a suitable model, PKCELL engineers need the device application, voltage requirement, size limitation, working current, pulse current, temperature range, lifetime target and mounting method.

For OEM projects, include drawings, connector requirements, tab direction and annual demand if available.

Why Choose PKCELL Lithium Button Batteries

PKCELL supports industrial customers from model selection to tab customization, sample testing and long-term B2B supply.

Stable 3V Output

✓Reliable lithium manganese dioxide chemistry

✓Stable discharge performance

✓Suitable for long standby electronics

Wide Model Range

✓CR2016, CR2025, CR2032, CR2450, CR2477

✓Compact and high-capacity options

✓Standard and customized structures

Low Self-discharge

✓Suitable for devices with long storage periods

✓Supports standby and backup applications

✓Long shelf life for distribution and OEM projects

OEM Customization

✓Solder tabs, pins and lead wires

✓Connector and pack assembly support

✓Private label and packaging options

Industrial Project Support

✓Sample support for device validation

✓Model recommendation before mass production

✓Long-term supply for B2B customers

Documentation Support

✓MSDS and transport document support

✓Certification information for export projects

✓Catalog and specification review available

OEM Button Cell Battery Support

Custom Lithium Button Batteries with Tabs, Leads and Connectors

For PCB-mounted devices and OEM electronics, PKCELL can support lithium button cell customization based on structure, tab direction, wire length, connector type and packaging requirements.

Solder Tab Options

✓Single tab or double tab

✓Horizontal or vertical orientation

✓Suitable for PCB mounting

Lead Wire Options

✓Custom wire length

✓Connector assembly

✓Shrink wrap and insulation support

Packaging Options

✓Bulk packaging

✓Tray or blister options

✓Private label support

1 Application Review

Confirm device type, space, current demand and mounting method.

2 Model Selection

Choose suitable CR model, capacity and battery structure.

3 Tab / Lead Design

Confirm tab direction, wire length, connector and insulation design.

4 Sample Testing

Provide samples for PCB mounting and device validation.

5 Mass Production

Move to stable supply for OEM and B2B projects.

Certifications & Quality Support

PKCELL supports lithium button cell battery projects with quality control, export documents and certification support for global B2B customers.

20+ Years Manufacturing Experience

100+ Export Countries

OEM Tabs & Leads Support

B2B Industrial Supply

MSDS ISO9001 CE IEC UL UN38.3

PKCELL battery certifications and quality documents

FAQ for Lithium Button Cell Battery Buyers

What is a lithium button cell battery? A lithium button cell battery is a compact primary lithium battery, usually coin-shaped, designed for stable voltage output and long shelf life in small electronic devices.

What is the difference between CR2032, CR2025 and CR2016? They have the same 20mm diameter but different thickness and capacity. CR2032 is thicker and usually has higher capacity, while CR2025 and CR2016 are used in thinner devices.

Can PKCELL provide lithium button batteries with tabs? Yes. PKCELL supports lithium button batteries with solder tabs, pins, lead wires and connectors for PCB mounting and OEM applications.

Which lithium button battery is suitable for car keys? CR2032 and CR2025 are commonly used in car keys and remote keyless entry devices, depending on device design and battery compartment size.

Which coin cell should I choose for CMOS or memory backup? CR2032 is widely used for CMOS backup. For PCB-mounted designs, CR2032 with tabs or leads may be more suitable.

Do lithium button cells support OEM packaging? Yes. PKCELL can support OEM labeling, packaging, tab customization and project-specific supply requirements for B2B customers.

Can I request samples before mass production? Yes. You can contact PKCELL with your application, model requirement and estimated demand to request samples for device validation.

What information should I provide for a battery recommendation? Please provide device type, required voltage, available space, operating current, pulse current, temperature range, mounting method and target service life.
