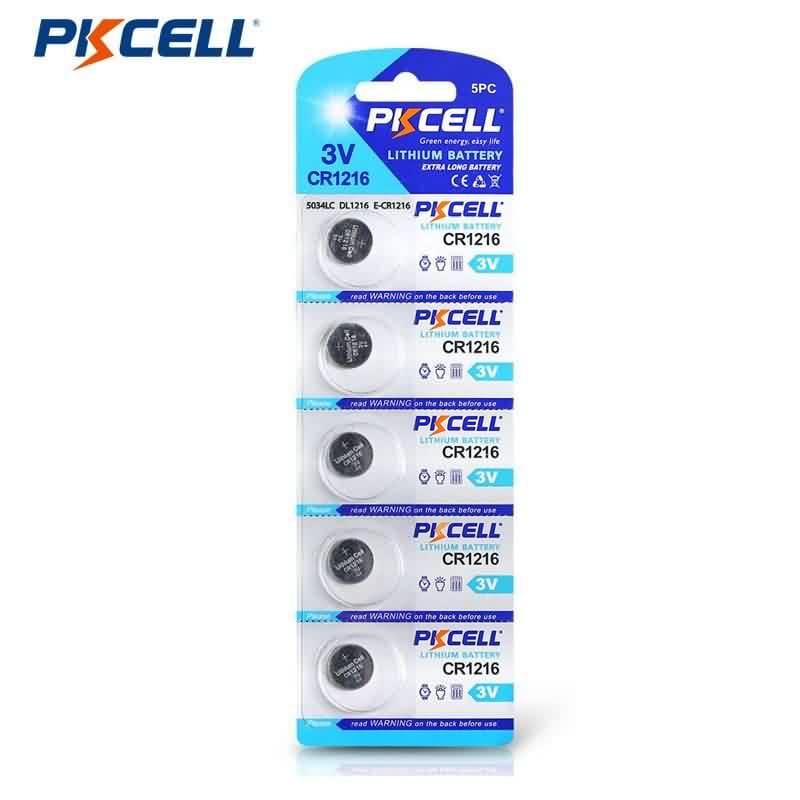

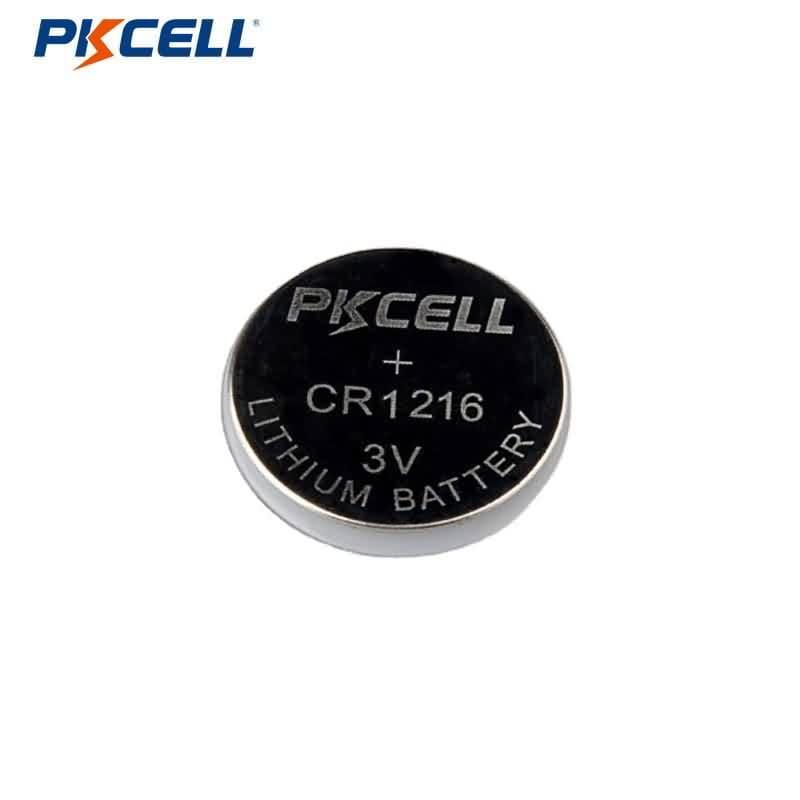

3V CR1216 Lithium Button Cell Battery (25mAh)

Short Description:

With 20+ Years of Experience, Pkcell has become a leading Li-Socl2 Battery manufacturer, Specializing in producing the CR1216 battery.


Dimension: 12.5*1.6 mm

Weight: 0.7 g

Self-Discharge Rate (Year): <1%

Shelf Life: >5 Years

Operating Temperature: -30~60 °C

Recommend Constant Current: 1.0 mA

Recommend Pulse Current: 5 mA

Applications Watches, Lasers, LED tea lights, Vibes, Calculators, Car remote controls, Toys, etc.

CR2016 Equivalent: 5034LC, BR1216, CR1216, DL1216, ECR1216, KCR1216, KECR1216, 635200, 635202 and 635203.


Certification

Certified By IEC, SNI, BSCI, and More, Ensuring Top-Notch Quality and Safety.

PKcell Certification


Product Detail

Product Tags

PKCELL Button Cell Battery with Different Terminations

different button cell battery terminations
Brand: PKCELL
Model: CR1216 Lithium Battery
Capacity: 25mAh
Volt: 3V
Chemical Composition: Lithium
Shelf Life: 5 years (not printed on battery)
PKCELL CR1216 lithium batteries provide high power and long life with 3 Volt performance and 25mAh capacity. With lithium chemistry and an ultra long 5 Year Shelf Life, these batteries are a great choice for long term storage.
Advantages:
1) Environmental friendly,Light weight
2) High density of energy
3) Low self-discharge
4) Low internal resistance
5) No memory effect
6) Free of mercury
7) Safety assurance : No fire, No explosion, No leakage
Application:
memory cards, music cards, calculators, electronic watches and clocks, toys, electronic gifts, medical equipment, LED flash, card reader, small appliances, alarm system, , electronic dictionary , digital electronics, IT,etc.
Disply and storage:
1.Batteries shall be stored in well-ventilateddry and cool conditions
2.Battery cartons should not be piledup in severa layers,or should not exceed a specified height
3.Batteries should not be exposed to direct sun ray for a long time or placed in areas where they get wet by rain.
4.Do not mix unpacked batteries so as to avoid mechanical damage and/or short circuit among each other
CR 1216 Performance:
Item Condition Test Temperature Characteristic
Open circuit voltage No load 23°C±3°C 3.05–3.45V
3.05–3.45V
Load voltage 62kΩ, after 5s 23°C±3°C 3.00–3.45V
3.00–3.45V
Discharge Capacity Continually discharge at 62kΩ resistance to cut-off voltage 2.0V 23°C±3°C Normal 480h
The lowest 430h
Warnings and Cautions:
1.Do not short circuited, recharge, heat, disassemble nor dispose in fire

2.Do not force-discharge.
3.Do not make the anode and the cathode reversed
4.Do not solder directly
Item No. System Normal Voltage (V) Capacity (mAH) Dimension(mm) Weight
(g)
CR927 Lithium 3.0  30 9.5×2.7 0.6
CR1216 Lithium 3.0  25 12.5×1.6 0.7
CR1220 Lithium 3.0  40 12.5×2.0 0.9
CR1225 Lithium 3.0  50 12.5×2.5 1.0
CR1616 Lithium 3.0  50 16.0×1.6 1.2
CR1620 Lithium 3.0  70 16.0×2.0 1.6
CR1632 Lithium 3.0  120 16.0×3.2 1.3
CR2016 Lithium 3.0  75 20.0×1.6 1.8
CR2025 Lithium 3.0  150 20.0×2.5 2.4
CR2032 Lithium 3.0  210 20.0×3.2 3.0
CR2032 Lithium 3.0  220 20.0×3.2 3.1
CR2050 Lithium 3.0  150 20.0×2.5 2.4
CR2320 Lithium 3.0  130 23.0×2.0 3.0
CR2325 Lithium 3.0  190 23.0×2.5 3.5
CR2330 Lithium 3.0  260 23.0×3.0 4.0
CR2430 Lithium 3.0  270 24.5×3.0 4.5
CR2450 Lithium 3.0  600 24.5×5.0 6.2
CR2477 Lithium 3.0  900 24.5×7.7 7.0
CR3032 Lithium 3.0  500 30.0×3.2 6.8
