Introduction
In our tech-filled world, we use many small devices and complex systems. Because of this, we really need power sources that are reliable and last a long time. The 3.6V ER26500 battery is an excellent choice because of its strong features. This article will look at everything about the ER26500 3.6V battery. You will learn about the specifications, benefits, and uses of the ER26500 battery. This guide will help you understand this powerful lithium power source simply and help you choose a better battery solution.
What is an ER26500 Battery?
The ER26500 battery is a primary lithium battery. This means you cannot recharge it. It uses lithium-thionyl chloride (Li-SOCl₂) as its chemical makeup and has a cylinder shape. This battery operates at a voltage of 3.6V. The name "ER26500" refers to its size, which is 26.2mm in diameter and 50.5mm in height. It is classified as a 'C' size battery.
The ER26500 batteries are great for devices that run on a higher voltage. Their strong voltage and good discharge features make them a top choice for many purposes. These batteries are made for devices that require lasting, steady power. For example, think of water meters, GPS trackers, industrial sensors, and security systems. These devices often need to function for several years without any human contact. That's why they need a battery that lasts long, even in tough settings.

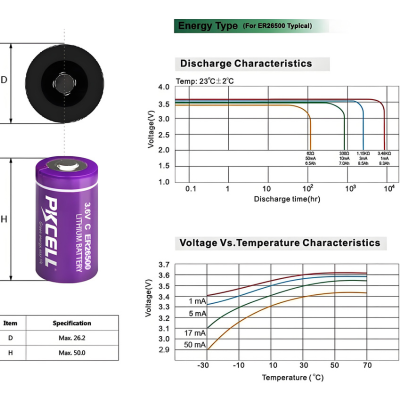

Understanding the details in an ER26500 lithium battery datasheet is important. This will help you ensure it meets your device's power needs. Let's look at common specifications for an ER 26500 battery:
| Specification | Detail |
|---|---|
| Type | Non-rechargeable lithium battery |
| Chemistry | Lithium Thionyl Chloride (Li-SoCl2) |
| Nominal Voltage | 3.6V |
| Nominal Capacity | 8500-9000mAh |
| Max Continuous Discharge Current | 200 mA |
| Max Pulse Discharge Current | 400 mA |
| Dimension | C size; Diameter: 26.2mm; Height: 50.5mm |
| Weight | 55g |
| Operating Temp. | -55°C to +85°C |
| Self-Discharge Rate | ≤1% per year at 25°C |
| Shelf Life | Up to 10 years |
| Terminal Options | Standard, Solder Tabs, Axial Pins, Custom |
Manufacturers such as Pkcell offer detailed datasheets. These sheets help consumers decide if their batteries are the right choice. Knowing these specifications helps you get the best performance and ensures compatibility with your devices.
Key Features and Performance of ER26500 Batteries
The ER26500 3.6V battery has many great features. Let's see what makes it special:
- High Energy Density: The ER26500 has an energy density of up to 590Wh/kg. This means it can hold much power in a small amount of space.
- High and Stable Voltage: The ER 26500 always gives a steady 3.6V. This is different from regular alkaline batteries, which supply only 1.5V. The higher voltage is suitable for devices that need extra power.
- Wide Operating Temperature Range: The ER26500 3.6v battery can function in very cold or very hot conditions. It works well from -55°C to +85°C, making it a good choice for outdoor or industrial use.
- Low Self-discharge Rate: Unlike other batteries that lose energy over time, the ER26500 lithium battery stays strong when not in use. Its self-discharge rate is less than 1% each year at 25°C.
- Long Storage Life: The ER26500 battery can be kept at room temperature for up to 10 years and still work like new. This feature is excellent for emergency systems or backup power.
Typical Applications of ER26500 Lithium Battery
ER26500 lithium batteries have great features that make them very popular. They are used in both industrial settings and daily gadgets. Let's explore the common uses of ER26500 3.6V batteries and why this battery is the best choice.
1. Smart Utility Meters
ER26500 lithium batteries are commonly used in smart utility meters. This includes water meters, gas meters, and electricity meters. They keep track of usage accurately for a long time. These meters are usually installed outside or in hard-to-reach places, making it hard to change the battery. The ER26500 battery lasts long, has a low self-discharge rate, and provides a stable output of 3.6V. This means the meters can operate for many years without stopping. It helps lower maintenance costs and keeps data collection steady.
2. Medical Devices
Some portable medical devices need steady power for safe operation. ER26500 batteries are perfect for this. They supply reliable voltage and can operate in various temperature settings. They have a low chance of leaking and a long shelf life. This makes them a good choice for essential devices like infusion pumps, blood glucose meters, AEDs, and others.
3. Security Systems and Alarms
In many alarm systems, being reliable is very important. This includes security alarms, motion detectors, and smoke detectors. A power failure can cause serious problems. ER26500 3.6V batteries provide strong energy and steady voltage. They ensure these systems keep working around the clock. These batteries continue to work during blackouts, which is crucial for security systems.
4. Industrial IoT Sensors
Factories and plants use IoT sensors to gather data on things like temperature, humidity, and pressure. These sensors are often placed in tough locations and must always work perfectly. ER26500 lithium batteries are a great choice. They last long, withstand harsh conditions, and provide the steady power needed for accurate data to be sent in real-time.
5. GPS Devices
Many GPS trackers are put in cars, shipping containers, or collars to track wildlife. These devices usually do not get charged often. The ER26500 battery is a great fit because it is small, lasts a long time, and works well in both hot and cold temperatures. It provides the reliable and lasting power that GPS systems require to track location information for several months or even years.
How to Choose a Reliable ER26500 C-Size Battery?
Choosing the right ER 26500 lithium battery is key for your device to run well and have a long life. To make a good choice, pay attention to a few easy factors:
Power Requirements | Operating Conditions | Size Compatibility | Brand and Quality | Price and Order Size
Choosing the best battery can make your device work better. It also means you won't have to change it as often. If you want more help, look at our guide: "The Considerations of Choosing the Right Battery for Devices."
Safety Tips When Using ER26500 Lithium Battery
The ER26500 lithium battery is powerful and dependable. It offers several benefits. However, it's crucial to use it the right way. Handling it safely helps avoid issues and keeps the battery functioning properly. Here are some simple safety tips:
Store in a Cool, Dry Place | Do Not Recharge | Avoid Short Circuits | Don't Crush, Drop, or Open it
Check Batteries Often | Keep Away from Kids and Pets | Recycle Used Batteries Properly
Using ER 26500 batteries can be safer and help them last longer if you follow these steps. Want more helpful advice? Check out our blog: "Battery Maintenance and Safety Tips: A Complete Guide."
Where Can I Buy High-quality Battery ER26500?
When you buy an ER26500 lithium battery, picking a trusted brand is very important. Pkcell is a well-known battery maker with more than 25 years of experience. Our batteries are used in over 100 countries and are famous for their strong performance and safety. Here are some reasons why Pkcell is a great choice for your ER26500 battery needs:
- ✅ Trusted Quality: Every ER26500 battery is made to meet the highest standards like CE, UL, IEC, UN38.3, and RoHS.
- ✅ OEM & ODM Battery Solutions: Do you need more power or special wiring? Pkcell has custom battery solutions for different devices.
- ✅ Flexible Orders: Whether you want a few or many, Pkcell offers reasonable prices and excellent service.
- ✅ Fast Delivery: Orders ship quickly and safely, so your batteries arrive on time, no matter where you are.
- ✅ Expert Help: If you have questions, Pkcell's engineering and customer service teams are ready to help you.
- ✅ Free Samples Available: You can try before you buy! Sample ER26500 batteries are available if you ask.
Pkcell ER26500 3.6V batteries are made to last and provide reliable energy. Contact us for a quote or to find out how we can assist with your battery needs!
Conclusion
The ER26500 battery is a wise choice for devices that need strong and long-lasting power in tough places. This battery works well in utility meters, security systems, and medical devices. It gives excellent performance and lasts a long time. The high energy density, low self-discharge, and wide range of operating temperatures make it popular across many industries. To get the best use out of your ER26500 lithium batteries, learn how they work, where they are used, and how to handle them safely. When you choose an ER26500 lithium battery, focus on quality and reliability to ensure it works well with your devices. For a high-quality ER26500 3.6V battery, buy from trusted suppliers. This way, you will get a reliable product that performs well.
Frequently Asked Questions
What devices are ideally suited for a 3.6V ER26500 battery?
The 3.6V ER26500 battery is wonderful for devices that need a lasting and reliable power source. They work well in very cold and hot conditions. This is why ER 26500 batteries are a wise choice for complex tasks. You often find them in water, gas, electric meters, security systems, and medical equipment.
Can I recharge an ER 26500 battery?
No, the ER26500 is a lithium battery that cannot be recharged. These batteries are meant for one-time use only. Charging them can be dangerous. It can lead to overheating, leaks, or even breaking. Always read and follow the safety instructions provided by the manufacturer.
Are ER26500 batteries safe to use in outdoor environments?
Yes, ER26500 batteries are safe and good for many outdoor activities. They can function well in temperatures from -55°C to +85°C. However, you should consider the kind of weather they will encounter. Taking care of them is vital to keep them safe and performing well.
Post time: Apr-14-2025
