Introduction
In today's world, we use technology a lot more than before. This makes batteries very important. Lithium batteries stand out because of their outstanding performance. A special type is the lithium thionyl chloride (Li-SoCl2) battery. It combines strong energy from lithium with special features from thionyl chloride. That is why Li SOCl2 batteries are popular across various industries. This guide will explain everything you need to know about LiSoCl2 batteries. We will explore how they work, their benefits and drawbacks, and their different uses.
Understanding the Li SoCl2 Battery

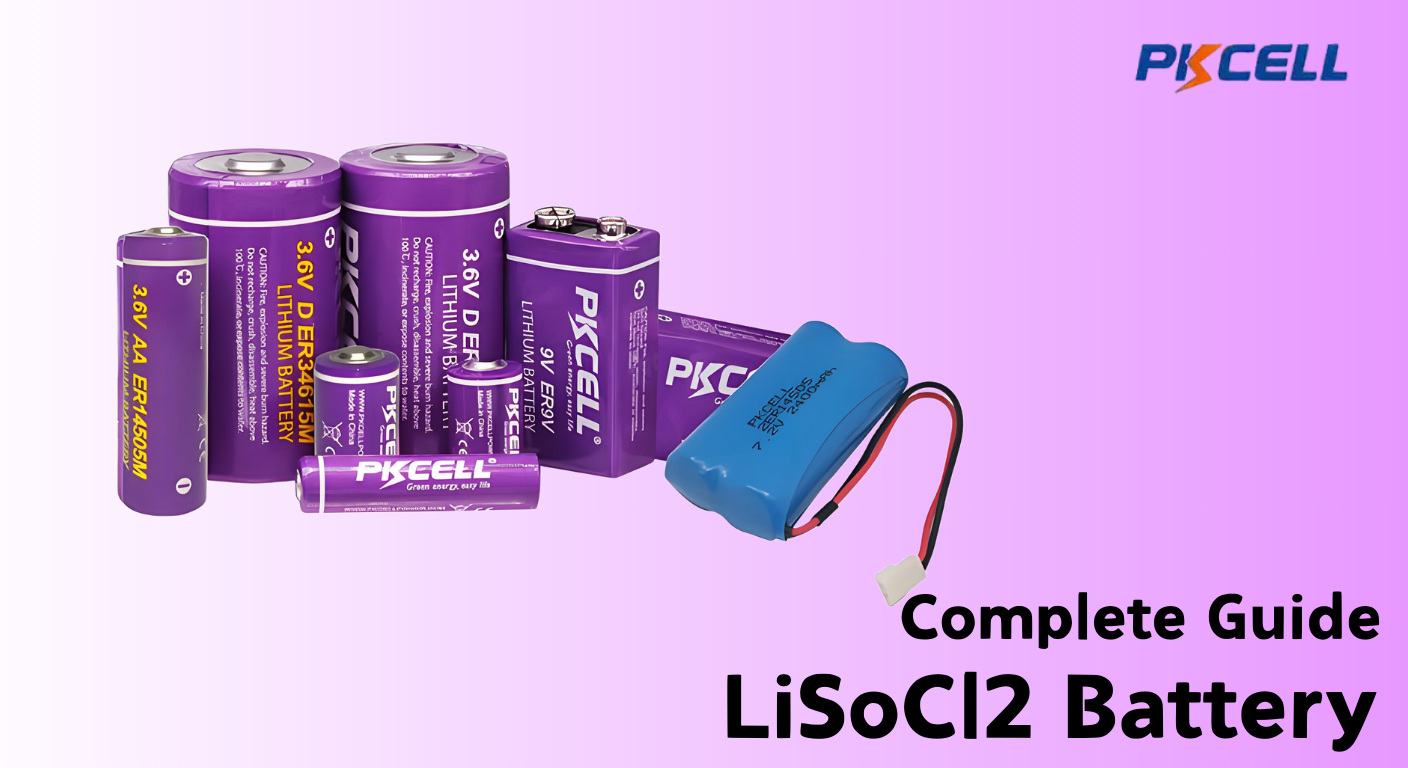

Li-SoCl₂ batteries are batteries that cannot be recharged. "Li" stands for lithium metal, the anode that stores energy. "SoCl₂" refers to thionyl chloride, the electrolyte and cathode material. These batteries come in several shapes and sizes. You can find them in standard sizes like AA and D, or you may see smaller coin cell batteries.
Li-SoCl2 batteries have many good features. They have high energy density and long lifespans. Compared to other lithium batteries, they are more stable. They function well in both hot and cold weather. Also, they use less energy when not in use. They may cost more than some other choices, but their reliability makes them ideal for industries, medical needs, and distant monitoring.
Working Principle
Li SoCl2 battery generates power through a chemical reaction between lithium (Li) as the anode and thionyl chloride (SoCl2) as the cathode and electrolyte. When the battery discharges, which means it powers a device, lithium atoms at the anode release electrons. These electrons move through an external circuit to create the electric current that powers devices.
At the cathode, thionyl chloride also reacts. It accepts the electrons released by lithium, which creates sulfur dioxide (So2) and lithium chloride (LiCl). A key part of this process is the formation of a passivation layer of lithium chloride forms on the lithium anode. It helps control the reaction pace, stops self-discharge, and keeps the battery's shelf life long. The Li SoCl2 lithium battery's reactions produce a steady voltage output, typically 3.6V. This makes it a trusted power source for many applications.
| Feature | Detail |
|---|---|
| Type | Non-rechargeable lithium battery |
| Nominal Voltage | 3.6V, 9V |
| Nominal Capacity | 400~35000 mAh |
| Weight | 5~220 g |
| Size | AAA, 1/2AA, 2/3AA, AA, A, C, CC, D, etc. |
| Operating Temperature Range | From -60°C to +85°C |
| Shelf Life | > 10 years |
| Hot Selling Model | ER14250, ER14505, ER26500, ER34615 |
Bobbin Type and Spiral Type
Li-SoCl2 batteries are available in two main designs, each suited for different applications:
- Bobbin-type (Energy): It features a cylindrical anode wound around a central cathode. This structure increases the anode-to-cathode ratio, boosting energy density. Because of their compact size and long-lasting power, bobbin-type batteries are ideal for space-limited applications requiring high energy output.
- Spiral-type (Power): It uses a spiral-wound design, where the anode and cathode are wound together. This design provides strong mechanical stability and allows for flexible battery shapes and sizes. Spiral-type batteries are often chosen for higher current applications that need a durable and robust power source.
Advantages and Disadvantages of LiSoCl2 Battery
Advantages
- High Energy Density: Li SoCl2 battery can store a lot of energy in a small and light form. It can hold up to 650 Wh/Kg.
- Wide Operating Temperature: These batteries can function well in very cold and hot temperatures, from -60°C to +85°C. This means they are great for tough situations.
- High Voltage: The nominal voltage is 3.6V, higher than most other lithium primary batteries. Other primary lithium batteries usually have voltages between 1.5V and 3V.
- Stable Voltage and Current: When using them, there are only small changes in voltage and current. This helps devices run well and protects delicate components.
- Low Self-Discharge: At room temperature (25°C), they lose less than 1% of their charge every year.
- Long Shelf Life: If you store them properly, Li-SoCl₂ batteries can last over 10 years without losing much power.
- Reliable and Safe: They are made with a non-flammable liquid and have a strong design, which lowers safety risks. They also include features to prevent leaks and over-discharge, ensuring safe use in essential situations.
- Multiple Sizes and Shapes: These batteries come in different forms, such as coin, cylindrical, and prismatic. Each form has various sizes and capacities, meeting different needs.
Disadvantages
- Non-Rechargeable: Li-SoCl₂ batteries are primary lithium batteries. You can't recharge them, so you must replace them when they run out.
- Safety Issues: These batteries contain harmful and corrosive materials. They can hurt your skin and eyes if you touch them. So, you must be careful when handling them.
- Higher Cost: Since these batteries are meant for one-time use, replacing them often can become expensive. This is especially true when you use too much power.
Practical Applications of Li-SoCl2 Lithium Batteries
Li-SoCl2 batteries are famous for their strong energy density, long lifespan, and excellent heat resistance. These qualities make them perfect for several uses. You can find them on many devices across various fields.
1. Utility Meters (Electric, Gas, Water Meters)
Li SoCl2 battery can power smart meters for over 10 years without needing a change. It has a low self-discharge rate. This means it works well and requires very little upkeep.
2. Medical Devices (Implantable devices and Portable diagnostics)
The reliability and lifespan of batteries are crucial for medical devices. This helps them work well for a long time without issues. Implantable devices like pacemakers and neurostimulators rely on LiSoCl2 batteries for steady, long-lasting power. Portable diagnostic tools, like handheld blood glucose meters and ultrasound scanners, benefit from the batteries' small size and stable performance.
3. Alarm and Security Wireless Systems
Wireless security sensors, smoke detectors, wireless cameras, and alarms use lithium thionyl chloride batteries. These batteries last a long time. They provide steady power and need very little care. This means they can run for years without needing a change. This is perfect for devices that mostly stay in standby mode.
4. Industrial and IoT Sensors
Lithium thionyl chloride batteries are ideal for IoT and remote monitoring sensors for oil pipelines, weather stations, and industrial equipment because of their long life and tolerance to extreme temperatures. This allows data to be accurately sent even in challenging locations or remote areas.
5. Emergency and Military Equipment
Li SoCl2 lithium battery is widely used in military communication devices, emergency beacons, and night-vision systems. They are well known for being strong and lasting a long time. This is important, especially in remote areas where it can be difficult to get replacements.
Li SoCl2 Batteries vs. Other Lithium Batteries
Li-SoCl2 batteries are a type of lithium battery. There are several other types too, such as lithium manganese dioxide (LiMnO2), lithium-ion (Li-ion), and lithium-iron disulfide (Li-FeS2). Each type has different strengths and weaknesses. Let's look at how Li-SoCl2 batteries compare to other lithium batteries.
| Feature | LiSoCl2 | LiMnO2 | Li-ion | Li-FeS2 |
|---|---|---|---|---|
| Energy Density | High | Moderate | High | Low to Moderate |
| Rechargeability | Non-rechargeable | Non-rechargeable | Rechargeable | Non-rechargeable |
| Temperature Range | Excellent (wide temperature range) | Good (works in a wide temperature range) | Good (depends on specific type) | Good (works in a wide temperature range) |
| Safety | High (stable in extreme conditions) | High (stable, less risk of overheating) | Moderate (the risk of thermal runaway) | Good |
| Cost | High | Low to Moderate | Moderate to High | Moderate |
| Environmental Friendliness | Less (toxic materials, difficult to recycle) | More (relatively safe materials) | Moderate | Moderate |
| Common Uses | Consumer electronics, Remote sensing, military, Industrial applications | Consumer electronics, medical devices, power tools | Consumer electronics, electric vehicles | Consumer electronics |
Selecting the Right LiSoCl2 Battery for Your Needs
Choosing the correct Li SoCl2 battery is vital for your needs. You need to think about several factors. These will help make sure the battery works well, is safe, and lasts a long time:
Power Needs | Operating Conditions | Size Match | Brand and Quality | Cost and Quantity
For more details on how to choose the best battery, please read our other article: The Considerations of Choosing the Right Battery for Devices.
Storage and Safety of Li SoCl2 Batteries
It is important to store and handle LiSoCl2 batteries correctly to ensure they last longer and keep users safe. Please follow the tips below.
Store in a cool and dry place | Do Not Charge | Prevent Short Circuits | Avoid Physical Damage
Regularly check the battery | Keep Away from Children and Pets | Proper Recycling and Disposal
For more details about staying safe with Li SoCl2 battery, please read our other article: Battery Maintenance and Safety Tips: A Complete Guide.
Environmental Impact and Recycling of Li-SoCl2 Batteries
It is important to throw away the LiSoCl2 battery properly. This is needed to keep the environment safe. These batteries contain harmful materials that must be disposed of carefully. If not thrown away right, they can leak dangerous substances into the soil and water. This can cause pollution and even lead to fires. Please follow these safe recycling tips:
- Find battery recycling programs close to you.
- Do not burn Li-SoCl₂ batteries or throw them in the regular trash.
- Take used batteries to approved recycling centres or collection locations in stores.
- Before recycling, check them for any damage or leaks to stay safe.
- Pack and handle them safely before you throw them away.
Conclusion
Li-SoCl2 batteries have a high energy density. They last a long time and work well in tough conditions. This quality makes them great for industries, medical devices, and remote monitoring systems. It's important to know how Li-SoCl2 batteries work, what makes them different from other lithium batteries, and their environmental impact. This knowledge helps you choose the best power source. If you need a reliable and high-quality LiSoCl2 battery, check out Pkcell. You can contact us anytime for more information or a price quote!
Frequently Asked Questions
Can Li SoCl2 Batteries Be Recharged?
Lithium thionyl chloride batteries are primary batteries. This means they are not made to be recharged. Trying to recharge them can be very risky. It can cause a fire or even an explosion.
Can Li-SoCl2 batteries operate in extreme temperatures?
One great benefit of lithium thionyl chloride batteries is that they can work in many different temperatures. They can run well in temperatures from -60°C to +85°C. This feature makes them ideal for harsh environments.
What is the expected lifespan of Li-SoCl2 batteries under normal usage?
Li SoCl2 lithium batteries can last a long time. Due to their low self-discharge rate, they can last 5-10 years, depending on usage. This depends on things like the type of battery, how it is used, and how it is stored.
Where Can I Buy High-quality LiSoCl2 Lithium batteries?
You can get them from battery makers, online shops, or places that sell electronics. It's important to choose trusted brands. This way, you can be sure they are high quality and safe.
