Introduction
Lithium batteries are essential in today's electronics. They are reliable and last a long time. This makes them great for many devices and tools. One type of lithium battery is the CR14250 battery, known for its unique size and strong performance. In this guide, we will see what makes the CR14250 batteries different. We will explore its features, technical details, uses, safety tips, and how to pick the best one. Whether you are new to this or want to learn more, this guide is good for you.
Overview of CR14250 Battery

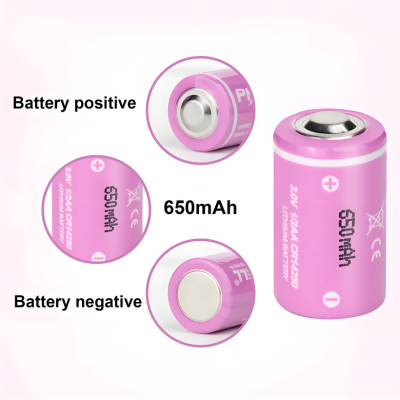

The CR14250 battery is a cylindrical primary lithium battery. You cannot recharge it. The name "CR14250" comes from its size: about 14mm wide and 25mm tall. The "CR" means it uses lithium manganese dioxide (LiMnO2) as its chemistry. This battery is also known as a 1/2 AA battery because of its size.
CR14250 batteries are popular in several areas. They are commonly found in consumer electronics, medical devices, and utility meters. These batteries are known for having a high energy density. This makes them ideal for devices that need a small but powerful power source. They also have a low self-discharge rate. This means the batteries can hold their charge for a long time. This quality makes them great for long-lasting power, such as memory backup or remote sensors, are needed.
Knowing the technical specifications of the CR14250 lithium battery is important to choose the right battery for your needs. The table below shows the main specifications:
| Specification | Detail |
|---|---|
| Type | Non-rechargeable lithium battery |
| Chemistry | Lithium Manganese Dioxide (LiMnO2) |
| Nominal Voltage | 3V |
| Nominal Capacity | 650 - 1050 mAh |
| Standard Discharge Current | 10 mA |
| Dimension | 1/2AA size; Diameter: 14.5mm; Height: 25.0mm |
| Weight | 10g |
| Operating Temperature | -40°C to +85°C |
| Self-Discharge Rate | ≤1% per year at 25°C |
| Shelf Life | Up to 10 years |
| Terminal Options | PC pins, tabs, solder tabs, leads, wire, cable, connectors, etc. |
These specifications might change a little based on the manufacturer and the specific battery model.
Benefits of the Lithium 3v CR14250 Batteries
- High Energy Density: This means the CR 14250 battery can hold a lot of energy in a small area. It is great for small devices where space is tight.
- High Open Circuit Voltage: This helps with effective energy transfer and reliable use in many situations.
- Wide Operating Temperature Range: Works well in extreme temperatures from -40°C to +85°C, which is suitable for different environments.
- Stable Operating Voltage and Current: It gives steady performance, which is important for sensitive electronics.
- Long Shelf Life: When not used, the CR14250 3v battery can last up to 10 years at room temperature. This makes it good for backup systems.
- Low Self-Discharge Rate: It keeps its charge well, losing less than 1% per year at 25°C, so it is ready when you need it.
- Compact and Lightweight: Its small design makes it easy to fit into devices with limited space without adding much weight.
How to Properly Choose CR14250 3v Battery?
Choosing the right CR14250 battery is key for your device to function safely and last a long time. To find the best option, remember a few straightforward things.
Understand Your Device's Needs | Check the Operating Conditions | Size Compatibility | Brand and Quality | Price and Amount
For more help on picking the right battery, check out our complete guide: "The Considerations of Choosing the Right Battery for Devices."
Safety Precautions When Using CR14250 Battery
CR14250 batteries offer several advantages but must be careful when using them and stick to safety guidelines. These batteries contain lithium, which is a highly reactive metal. A CR14250 lithium battery works well and is safe if used properly. If mishandled, it could lead to issues. Here are some simple tips to remember:
Store in a Cool and Dry Place | Do Not Recharge | Avoid Short Circuits | Prevent Physical Damage
Regularly Check the battery | Keep Away from Kids and Pets | Dispose of Responsibly
These safety steps will make your CR14250 battery last longer and work better. For more helpful tips, visit our full post: "Battery Maintenance and Safety Tips: A Complete Guide."
Common Applications of CR14250 Lithium Battery
1. Utility Meters
CR14250 lithium batteries are commonly used in utility meters, such as water, gas, and electricity meters. These meters require a small power source that lasts many years without needing to be replaced. The CR14250 battery provides a steady 3V output and has a very low self-discharge rate. This makes it ideal for meters placed in hard-to-reach locations and operating for a long time without maintenance.
2. Wireless Alarm Sensors
Wireless security systems use small batteries that last a long time, and the CR14250 lithium battery is an excellent choice for this. It works well in door and window sensors, motion detectors, and smoke alarms. Their dependability and long-lasting life are important for keeping you safe and aware. They help ensure your system runs smoothly and responds quickly to any dangers.
3. Memory Backup
CR14250 batteries are commonly used to keep memory safe in electronic devices when the main power is off. Devices such as CMOS memory, RTC (real-time clock), and computer backups depend on memory backup to save important data. These batteries deliver low continuous currents and keep a steady voltage over a long time. This means your data stays secure and easy to access until the device is turned back on.
4. Remote Monitor Systems
Devices like GPS, sea buoys, lifejacket lights, lifecraft lights, and cargo-locating systems use CR14250 3v batteries. These batteries provide long-lasting energy, which helps collect and send data in faraway places. They are small, last long, and work well even in tough conditions, making them a reliable power source. These systems are often placed outside in extreme weather, and this is where the strength of the CR14250 battery really stands out.
5. Other Consumer Electronics
Many small gadgets and tools, like LED flashlights, cameras, radios, and home-used medical devices, use CR14250 lithium batteries. They are popular because they are small and last a long time. People like not needing to change batteries often. These devices work well with the steady power and long shelf life of the CR 14250. This makes it a good choice for daily devices that need reliable energy in a small size.
Where Can I Buy High-quality CR14250 Batteries?
Finding a good place to buy high-quality CR14250 lithium batteries is critical. This ensures your devices work safely and effectively. If you use poor-quality batteries, they might not last long. They can leak or even damage your device.
We suggest that you buy from a reliable brand, such as Pkcellpower.com. PKCELL is a well-known maker and dealer that provides:
- ✅ Real and tested CR14250 batteries that follow international safety and quality rules
- ✅ OEM and ODM battery solutions
- ✅ Affordable pricing
- ✅ Dependable production, shipping, and service
- ✅ Options for buying in bulk or placing small orders
- ✅ Free samples available
The Pkcell CR14250 3V battery provides reliable, safe, and lasting power for various needs. Whether you are a business, a technician, or just a hobbyist, Pkcell offers high-quality products that meet safety and performance rules. Contact us today to find out more!
Conclusion
A good CR14250 battery is a strong power source. Its small size, high energy density, and steady performance make it an excellent choice for devices that need reliable power. It is crucial to know its specifications, advantages, uses, and safety tips to get the best results. Always buy from trusted sources, follow safety guidelines, and choose a battery that meets your device's needs. With proper care and smart choices, you will get the best performance from every CR14250 battery you use. If you want to buy dependable CR14250 batteries, look for trusted sources focusing on quality and performance.
Frequently Asked Questions
Can the CR14250 3v battery be recharged?
The CR14250 3v battery is a lithium battery that cannot be recharged. If you try to charge it, it can be damaged, overheat, or create safety problems. Always check the battery specifications and follow the manufacturer's instructions.
What are the storage recommendations for the CR 14250 battery?
Store your CR14250 lithium battery in a cool, dry spot to make it last longer. The temperature should be below 30°C. Avoid direct sunlight, damp areas, and big temperature swings.
