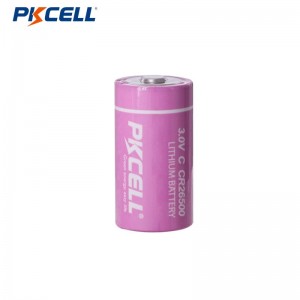

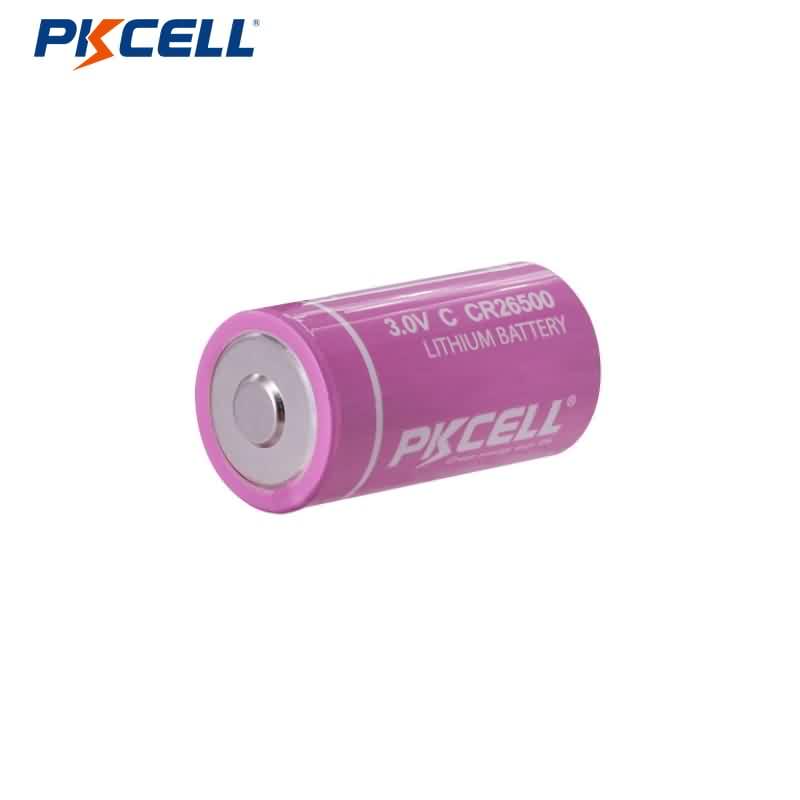

3V CR26500 LI-MnO2 Battery (5400mAh)
Short Description:
With 20+ Years of Experience, Pkcell has become a leading Li-MnO2 Battery manufacturer, Specializing in producing the CR17505 battery.
Dimension: 26.5*50.5 mm
Weight: 62 g
Self-Discharge Rate (Year): <1%
Shelf Life: >10 Years
Operating Temperature: -40~85 °C
Max.Constant Current: 2000 mA
Applications: Consumer Electronics, Medical Devices, Security Systems, Utility Meters, Military and Aerospace.
Certification
Certified By IEC, SNI, BSCI, and More, Ensuring Top-Notch Quality and Safety.
Available terminations:
1. P: axial leads
2. T, -PT2: radio pins
3. PT, -/TP: polarized tabs
4. MOLEX and JST connectors
5. Custom terminations available upon request
Advantages:
1. High energy density
2. High open circuit voltage
3. Wide range of operating temperature
4. Stable operating voltage and current
5. Long operating time
6. Low self-discharge rate (less than 1% per year at 25oC)
Applications:
1. Memory backup: CMOS memory, RTC(real time clock) and computer backup.
2. AMR utility meters: Electricity meter, gas meter and water meter etc.
3. Wireless alarm sensors: Smoke alarm systems, temperature monitors etc.
4. Remote monitor systems: GPS, sea buoys, lifejacket lights, lifecraft lights, cargo-locating systems etc.
5. Automotive and electronics: Automotive security systems, tire-pressure monitoring systems etc.
6. Electronics toll tags: Toll gates
7. Military electronics: Radio communication, night vision equipment, tracking and positioning systems etc.
LI-MnO2 Battery Specifications:
| Cylindrical LiMnO2 Battery | ||||||||
| Model | Nominal Voltage (V) |
Nominal Capacity (mAh) |
Standard Discharge current(mA) |
End Voltage (V) |
Max. Diameter (mm) |
Max. Height (mm) |
Reference Weight (g) |
TestTemperature (°C) |
| CR17345(CR123A) | 3v | 1500.0 | 10 | 2 | 17.0 | 34.5 | 16 | 23±3 |
| CR15H270(CR2) | 3v | 850.0 | 10 | 2 | 15.6 | 27.0 | 11 | 23±3 |
| CR17335 | 3v | 1500.0 | 10 | 2 | 17.0 | 33.5 | 16 | 23±3 |
| CR14250 | 3v | 650.0 | 10 | 2 | 14.5 | 25.0 | 10 | 23±3 |
| CR14505 | 3v | 1400.0 | 10 | 2 | 14.5 | 50.5 | 17 | 23±3 |
| CR14335 | 3v | 800.0 | 10 | 2 | 14.5 | 33.5 | 13 | 23±3 |
| CR17450 | 3v | 2000.0 | 10 | 2 | 17.0 | 45.0 | 25 | 23±3 |
| CR17450 | 3v | 2400.0 | 10 | 2 | 17.0 | 45.0 | 25 | 23±3 |
| CR17505 | 3v | 2300.0 | 10 | 2 | 17.0 | 50.5 | 28 | 23±3 |
| CR17505 | 3v | 2700.0 | 10 | 2 | 17.0 | 50.5 | 28 | 23±3 |
| CR18505 | 3v | 2500 | 10 | 2 | 18.5 | 50.5 | 35 | 20±3 |
| CR11108(CR1/3N) | 3v | 160.0 | 1 | 2 | 11.6 | 10.8 | 3.3 | 23±3 |
| CR-V3 | 6v | 3000.0 | 20 | 2 | 29X14.5X52 | 34 | 23±3 | |
| CR9V | 9v | 1200 | 1 | 5.4v | 48.5X36.5X17.5 | 29 | 23±2 | |
| CR26500 | 3v | 5400 | 10 | 2 | 26.5 | 50.5 | 62 | 20±3 |
| CR34615 | 3v | 12000 | 10 | 2 | 34 | 61.5 | 125 | 20±3 |
| CR-P2 | 6v | 1400.0 | 10 | 4 | 34.8X35.8X19.5 | 34 | 23±3 | |
| 2CR5 | 6v | 1400.0 | 10 | 4 | 34X45X17 | 34 | 23±3 | |
